I recently started a new project and figured it was getting far enough along to share.

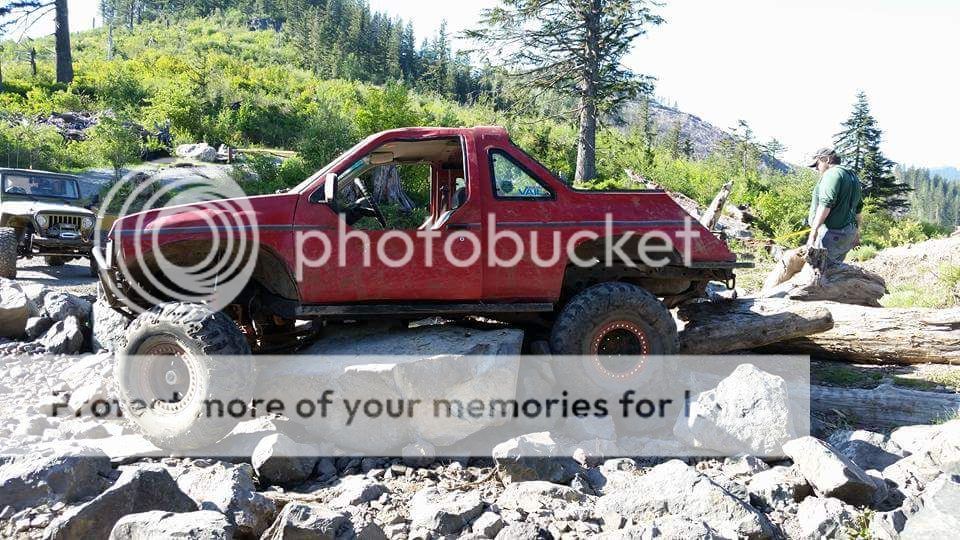

This build will be a budget build reusing many parts from my old rig ( The Pathy). (which is currently still together and I am still wheeling it for the time being.

New rig will be lots of tube with just mostly the firewall and windshield frame left from the stock rig. Frame will be cutoff in front of the motor mounts and behind the seats.

FB_IMG_1465184324899_zpsbltkvjvi.jpg~original


Couple reasons for starting fresh versus just building my current rig:

-Pathy's motor is on deaths doorstep
-Pathy has a 5 speed versus an auto in the new rig
-Fresh frame (Pathy's frame has a few patch jobs on it

Parts I plan to use off the Pathy include:

-Waggy D44 Front axle (4.56's, yukon chromos & super joints, lock-right)
-NWF TX-10/D300 doubler kit & JB Fab twinsticks
-Rear H233b 4.63 third member w/lock-right

and thats about all haha.

Here is the 'new' project. Stock 1992 Pathfinder VG30E and a auto trans.

20160306_123753_zpsyoiqe7lz.jpg~original


boardbysled

Tree Nerd.
Joined
Jun 10, 2009
Messages
4,467
Location
NW Oregon
Some new parts,

EMPI Wide vinyl suspension seats from Jeep Swag

2.5"x16" FOA Coilover shocks with reservoirs

Speedway steering wheel and quick disconnect

20160306_124041_zps6mjpfuxg.jpg~original


Pulled the housing and stripped the brackets off it and shaved the drain plug

20160409_170218_zpsedxrbsi9.jpg~original


Started building an axle truss

20160626_202536_zpskqsslc0m.jpg~original


20160626_202547_zpsedmxmkgj.jpg~original


20160703_150152_zpsdhvnter3.jpg~original


20160703_150208_zpsnnbflkf1.jpg~original


20160716_133657_zps6xzworpy.jpg~original


boardbysled

Tree Nerd.
Joined
Jun 10, 2009
Messages
4,467
Location
NW Oregon
Fabb'd up the rear 4 link, double triangulated with decent numbers according to the 4link calculator. Barnes 4wd brackets and heim joints. PVC links for now.:D

20160717_173948_zpshufws5o4.jpg~original


20160717_173958_zpsgxgkvwal.jpg~original


20160717_191035_zpspzbxqjgj.jpg~original


boardbysled

Tree Nerd.
Joined
Jun 10, 2009
Messages
4,467
Location
NW Oregon
Started on the tube work! Most of the tube is 1.75"x.120" DOM with some 1.75"x.120" HREW where it won't make contact with rock, along with some 1.5"x.120" HREW mixed in.

Hole-sawed a hole in the frame.

20160724_145829_zps8drsnnpk.jpg~original


Cut it off in the center of the hole so the tube mates up well.

20160724_153118_zps2bnhcyha.jpg~original


20160724_165807_zpshdljxqfu.jpg~original


Broke the follower die getting the bends too close together.:mad3:

20160724_204425_zpsstomxxun.jpg~original


New style follower die from JD2.

20160821_150204_zpshv6nzdzp.jpg~original


HF notcher setup. (Drill died today after about 18 notches)

20160724_212754_zpsvnfynmqi.jpg~original


Notch fresh from the HF setup, just needs a little flap wheel work.

20160724_212745_zpsviuiyvgg.jpg~original


boardbysled

Tree Nerd.
Joined
Jun 10, 2009
Messages
4,467
Location
NW Oregon
Matching rear 'framerail'

20160828_144304_zpssl3pjs1z.jpg~original


Crossbar in the rear (hopefully setup for a rear swaybar in the future)

20160828_151809_zpsmyanobfk.jpg~original


Cut the rocker panel off to make room for the slider bar.

20160828_182940_zpsg75qlnim.jpg~original


Slider bar and b-pillar mocked up.

20160903_172715_zpsxtcj2c7g.jpg~original


Rear belt-line bar mocked up

20160903_211848_zpsl3kzyxso.jpg~original


Rear seatbar mocked in

20160905_201933_zps9ivyk29s.jpg~original


Bend in the front seatbar to clear the transmission shifter cable

20160917_152358_zps4xhpkrkb.jpg~original


boardbysled

Tree Nerd.
Joined
Jun 10, 2009
Messages
4,467
Location
NW Oregon
And now we are caught up to today:

Started on the roof-line bar.

20160918_143037_zpsdnggdq0m.jpg~original


Roof-line bar & B-pillar connected. Next step will be to bend the roof-line bar down to meet the belt-line bar at where the rear shocks will mount in the future to make a node.

20160918_195623_zps16resp5l.jpg~original


SJR

New Member
Joined
Dec 23, 2006
Messages
392
Location
Bellingham WA
Thanks for sharin, fun to see people's progress on there builds with the tubing and creativity , will be following your progress


boardbysled

Tree Nerd.
Joined
Jun 10, 2009
Messages
4,467
Location
NW Oregon
Worked on it a bit more today. Decided that before I got much further, that I should redo the rocker bars. Moved them up about 6". Made sure to add frame plates.

20160925_165012_zpsr68zpgi2.jpg~original


20160925_165019_zps9c29uefq.jpg~original


boardbysled

Tree Nerd.
Joined
Jun 10, 2009
Messages
4,467
Location
NW Oregon
Was able to work on it a bit this weekend,

Shortened the rear framerails

20161002_151918_zpsevujjgh6.jpg~original


B-pillars and rear belt-line bar in:

20161002_154827_zps3upz4mgb.jpg~original


Notching the A-pillar

20161002_161829_zpsrlx62mrm.jpg~original


Roofline bar in, just need to cut and turn it and notch the C-Pillar.

20161002_171342_zps3eheeg19.jpg~original


boardbysled

Tree Nerd.
Joined
Jun 10, 2009
Messages
4,467
Location
NW Oregon
Didn't get a chance to work on it a whole lot this weekend, but got a little bit done.

Got the A-pillar/roofline/C-pillar bar in. All one piece, 3 bends, with 2 offsets.

20161009_143527_zpsk5qzuk3z.jpg~original


No pictures, but worked on the seat mounts some. Being 6'4" and mostly torso is making it a little challenging.


boardbysled

Tree Nerd.
Joined
Jun 10, 2009
Messages
4,467
Location
NW Oregon
After about 4 different variations, I was able to get the seat mounts in. I'm 6'4" 300lbs so it was hard to get them low enough without having to raise the roofline a bunch. They are sat as low as they can go in the chassis, but should work good.

20161015_200512_zps0ijxoa2v.jpg~original


Got the passenger side roofline bar bent up. Had to cut and sleeve this one as one of my offsets was a few degrees off.

20161016_151110_zps9gcadc1u.jpg~original


20161016_151127_zps7fz2l2lg.jpg~original


20161016_151140_zpsfvfcbgrg.jpg~original


20161016_151147_zpsue0as8av.jpg~original


Did a timelapse of bending up the roofline bar:
https://youtu.be/K8xVM1xtaIE

Got one of the roof bars in along with the harness bar. Also got some of the triangulation bars for the B-pillar in. I plan on ditching the normal headrests and making some that attach to the diagonal bars.

20161016_183436_zpstca6h0gc.jpg~original


20161016_183448_zps6gvulciy.jpg~original


20161016_183614_zpsq4surdd1.jpg~original


boardbysled

Tree Nerd.
Joined
Jun 10, 2009
Messages
4,467
Location
NW Oregon
Wanted to see where I was going next, so I did some layout with painter's tape.

20161017_165831_zpsfdffg20v.jpg~original


20161017_165847_zpsezksrx8u.jpg~original


Got started on the rear shock mounts. Shocks are 16"x2.5" FOA's. Using a behind the axle shock mount bracket from Barnes 4wd.

Had a bunch of grand ideas for shock mounts, but once I mock'd it up, a plan for a nice easy mount came together, almost like I had planned it...

Looks like I should end up with 6" uptravel and 10" down.

20161023_163341_zpseasy9a9w.jpg~original


20161023_163354_zpswzipuapg.jpg~original


20161023_165340_zpsudshvnsd.jpg~original


20161023_165353_zpsyue6djgn.jpg~original


20161023_181939_zpscyjefvuz.jpg~original


20161023_182023_zpskzhlcchi.jpg~original


20161023_182033_zpsj3jghjk4.jpg~original


I'll built a bracket in between the tubes. The hope will be to squeeze a 2"x2" airbump in as well, should be plenty of room.


boardbysled

Tree Nerd.
Joined
Jun 10, 2009
Messages
4,467
Location
NW Oregon
Looks Good:awesomework:

Thanks Jon.

Little bit of progress.

Got the rear shocks mounted.

20161106_170112_zpsnpfsxkvm.jpg~original


Little bit of contact between upper links and seat bar mount at full bump that will have to get addressed.

20161106_170126_zpsgmzx338n.jpg~original


Started on the roof bars. Got the browbar in.

20161106_173433_zpsv5agpxhb.jpg~original


20161106_173444_zpsndhg0y1m.jpg~original
